Pioneer TS-A942FH 6X9″ 3-Way Coaxial Speaker

4,511.00 6,940.00

Description

TS-A942FH

MRP. ₹ 6,940/-

Newly developed 4 way speaker makes your sound richer with deep bass sound and clear high frequency sound.

Looking for some powerful music in your car, these oval speakers with a deep basket is the perfect choice. Contributing to its impeccable sound reproduction is its new IMPP cone, elastic polymer surround, Long and symmetrical voice coil and the new developed magnetic circuit.

Open & Smooth Concept

Open & Smooth concept delivers Wide Sound Staging (Open) and Smooth Transition (Smooth) that targets the natural sound in car.

Carbon & MICA Reinforced IMPP

The new, rigid Carbon & Mica Reinforced IMPP cone and Elastic Polymer Surround provide quicker response and higher sensitivity produces deep and rich bass sound.

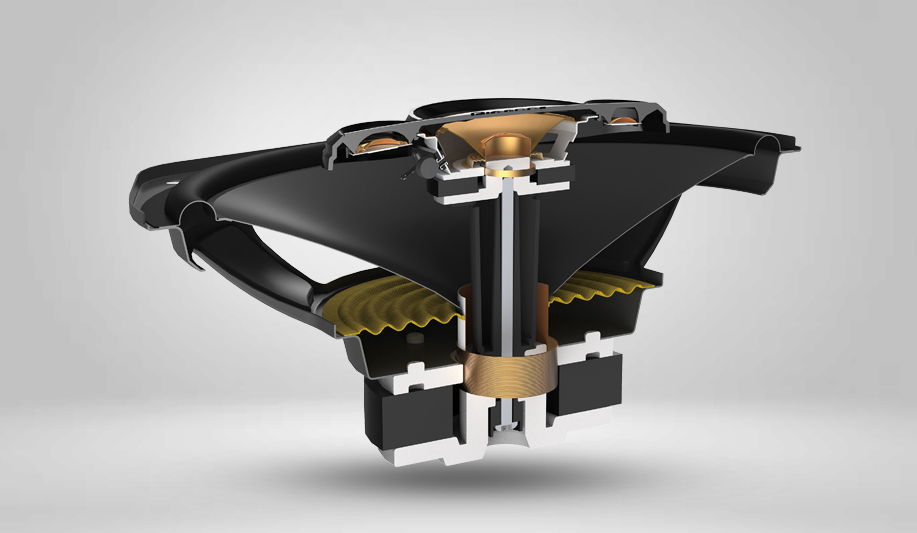

Optimized Motor Design

A new magnetic circuit and a long and symmetrical voice coil make both rich bass and low distortion possible.

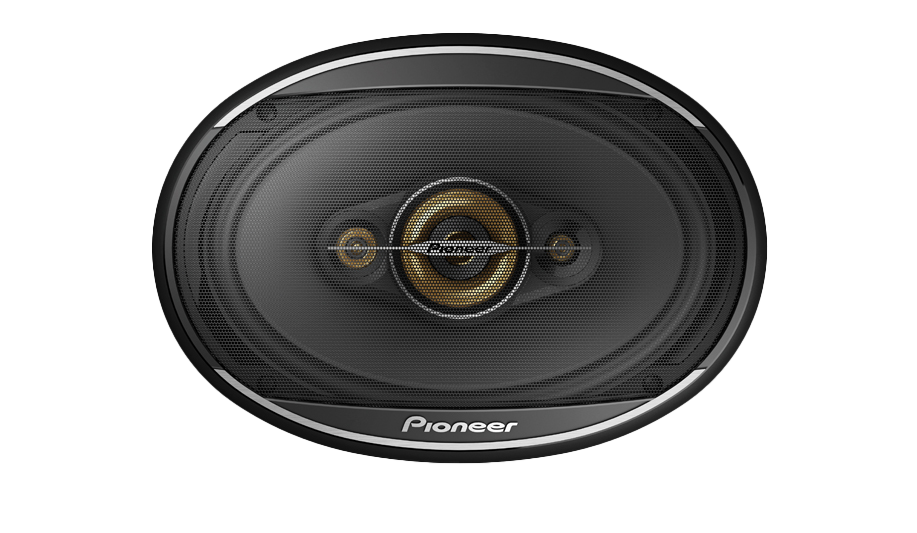

Full covered grille

This prevents a physical damage and deliver a reliability and high endurance.

Specifications

General Information
Type

Coax. 4-way

Maximum Music Power

650 W

Nominal power

100 W

Frequency Response

29Hz to 33KHz (-20dB)

Impedance

4Ω

Cone size

6″x9″(163mmx237mm)

Sensitivity

90dB


Woofer
Cone material

IMPP Composite

Color

Black

Surround material

Elastic Polymer


Mid-range
Cone material

PEI

Color

Red Gold


Tweeter
Cone material

PET

color

Red Gold


Installation information
Dimension(with grille)

(W) 186 X (H) 266 X (D) 116 [mm]

Cut out hole

153X222[mm]

Mounting depth

86[mm]
