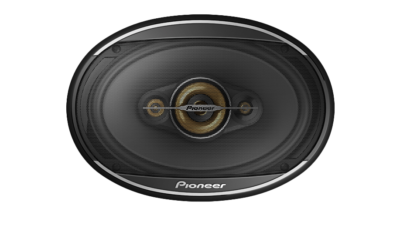

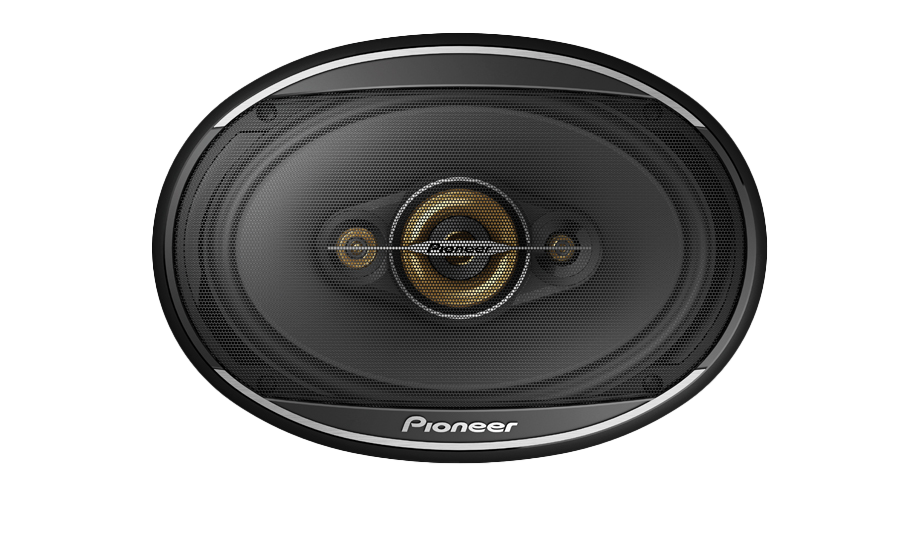

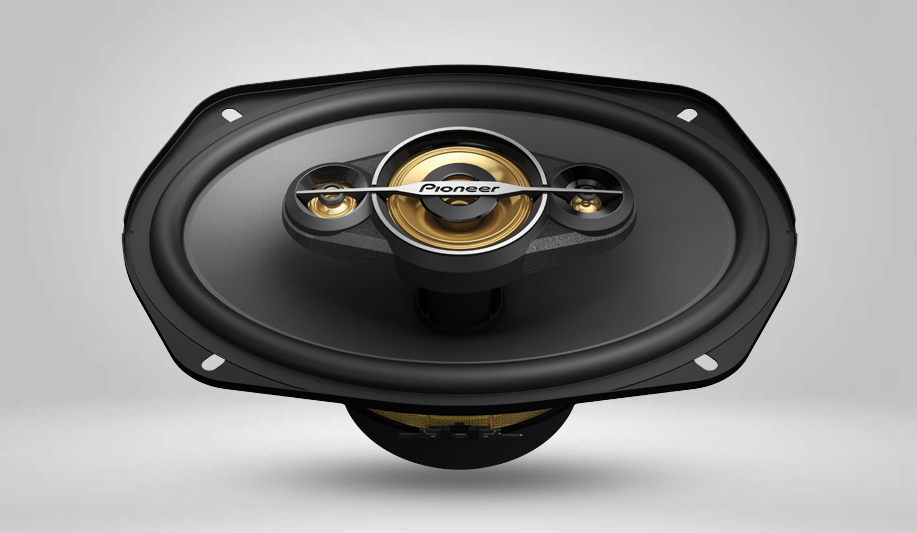

Pioneer TS-A942F 6X9″ 3-Way Coaxial Speaker

3,698.00 5,690.00

Description

TS-A942F

MRP. ₹ 5,690/-

Get deeper and richer bass sound, in spite of shallow type design with installation flexibility.

It is the best choice for cars with space constraints. These oval shaped speakers featuring a shallow basket can be easily placed in your car and reproduce deeper and richer bass sound.

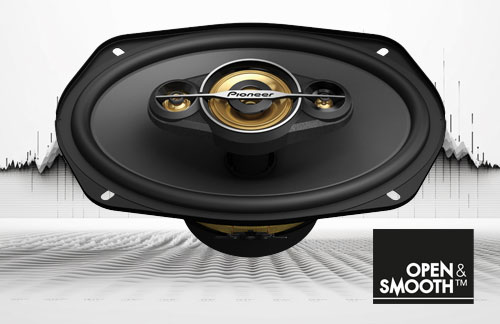

Open & Smooth Concept

Open & Smooth concept delivers Wide Sound Staging (Open) and Smooth Transition (Smooth) that targets the natural sound in car.

Carbon & MICA Reinforced IMPP

The new rigid Carbon and Mica Reinforced IMPP cone and Elastic polymer Surround provide quicker response and higher sensitivity produces deep and rich sound bass.

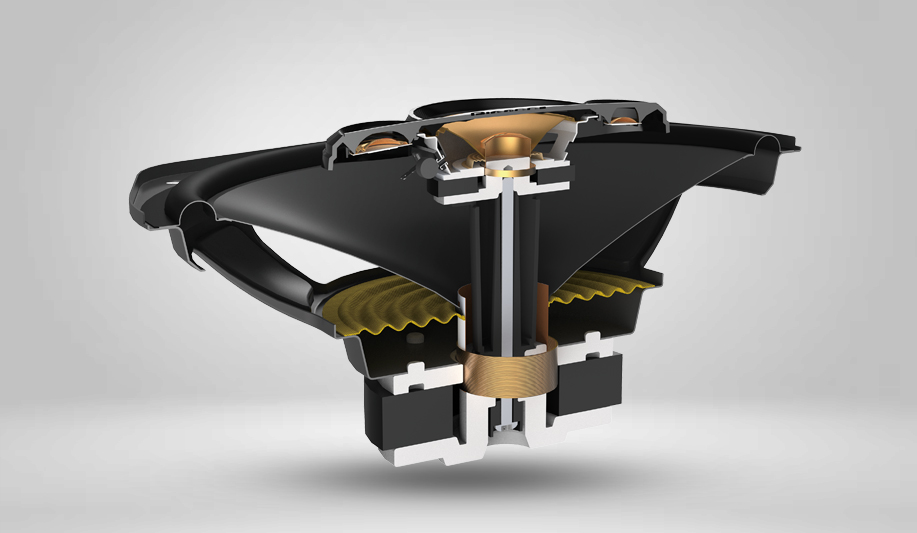

Optimized Motor Design

The new magnetic circuit and a long and symmetrical voice coil make both rich bass and low distortion possible.

Full covered grille

This prevents a physical damage and deliver a reliability and high endurance.

Specifications

General Information
Type

Coax. 4-way

Maximum Music Power

450 W

Nominal power

90 W

Frequency Response

29Hz to 28KHz (-20dB)

Impedance

4Ω

Cone size

6″x9″(163mmx237mm)

Sensitivity

92dB


Woofer
Cone material

IMPP Composite

Color

Black

Surround material

Elastic Polymer


Mid-range
Cone material

Pulp

Color

Black


Tweeter
Cone material

PET

color

Red Gold


Installation information
Dimension(with grille)

(W) 186 X (H) 266 X (D) 102 [mm]

Cut out hole

153X222[mm]

Mounting depth

72[mm]
