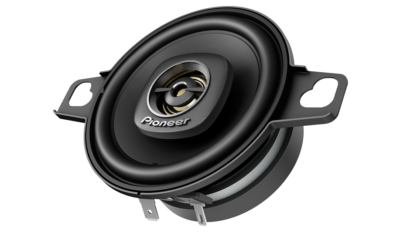

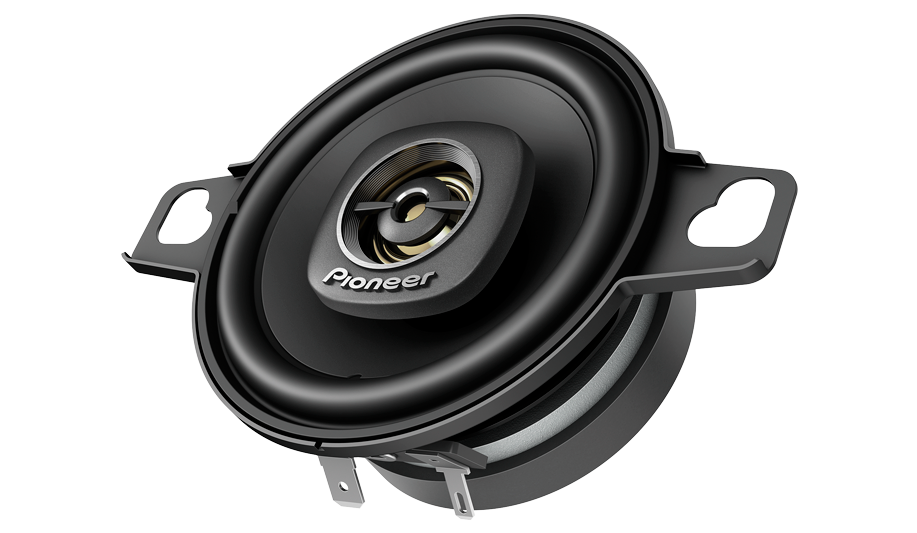

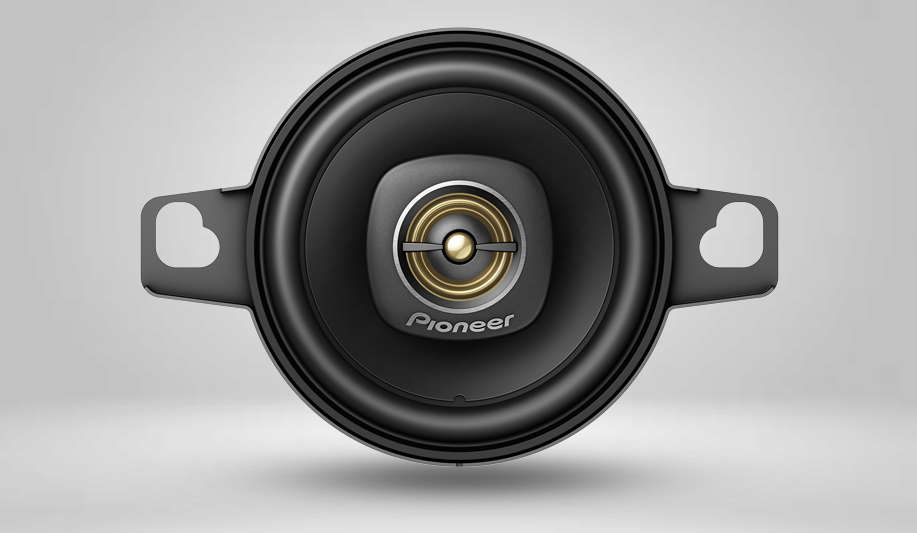

Pioneer TS-A709 2.75″ 2-Way Coaxial Speaker

5,352.00 6,690.00

Description

TS-A709

MRP. ₹ 6,690/-

The TS-A709 is a 2-way coaxial 7 cm speaker. Its carbon and mica reinforced woofer cone stands up to the harsh in-car environment while providing natural sounding tonal qualities with an OPEN & SMOOTH transition to the polyetherimide Tweeter.

Easily Upgrade to High Performance

Pioneer’s A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.

Open & Smooth Concept

Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.

Carbon & MICA Reinforced IMPP

Make strike balance of rigidity and internal loss for the superior vocal sound. Thereby gives Powerful and clear sound. Low distortion at high volume

Inline crossover network with High Quality Audio Capacitors

The inline audio quality capacitor is designed as an 850 Hz HPF or High Pass Filter. An HPF allows only higher frequencies above 850 Hz to the speaker. This protects the TS-A709 from high power low frequency damage.

Specifications

Main Features
Open & Smooth

Yes

Carbon MICA Reinforced IMPP

Yes

Speaker Size

7 cm

Type

2-way coaxial

Max Power

450 W

RMS

100 W

Frequency response

101 Hz to 34 kHz/ 850 Hz to 33kHz – with inline packaged crossover network

Sensitivity

82 dB

Impedance

4 Ω

Mounting Depth

32 mm

Woofer Cut-Out Hole

62 mm

Woofer material

IMPP™ Composite Cone

Voice Coil type

Copper

Magnet Type

Neodymium

X-Over Network

Yes (Inline)
