Description
W165

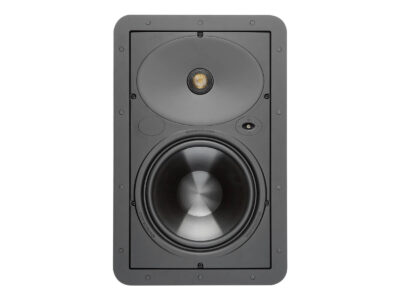

Incorporating a 6 1/2″ MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.
Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.
Frequency Response
60 Hz – 25 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
88.5 dB
Maximum SPL
107.4 dBA
Power Handling (RMS)
65 W
Recommended Amplifier Requirements
20 – 65 W
Drive Unit Complement
6 1/2” MMP II cone bass driver
1″ C-CAM pivoting Gold Dome tweeter
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Overall Diameter (Including Grille)
370 x 250 mm (149/16Â x 913/16“)
Overall Depth (Including Grille)
96 mm (33/4“)
Mounting Depth
92 mm (35/8“)
Cut-Out Hole Diameter
332 x 213 mm (131/16Â x 83/8“)
Fixing Type
6 position Tri-Grip dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Weight
2.21 kg (4 lb 14 oz)
Pre-Construction Bracket
Sold As
Single Unit
