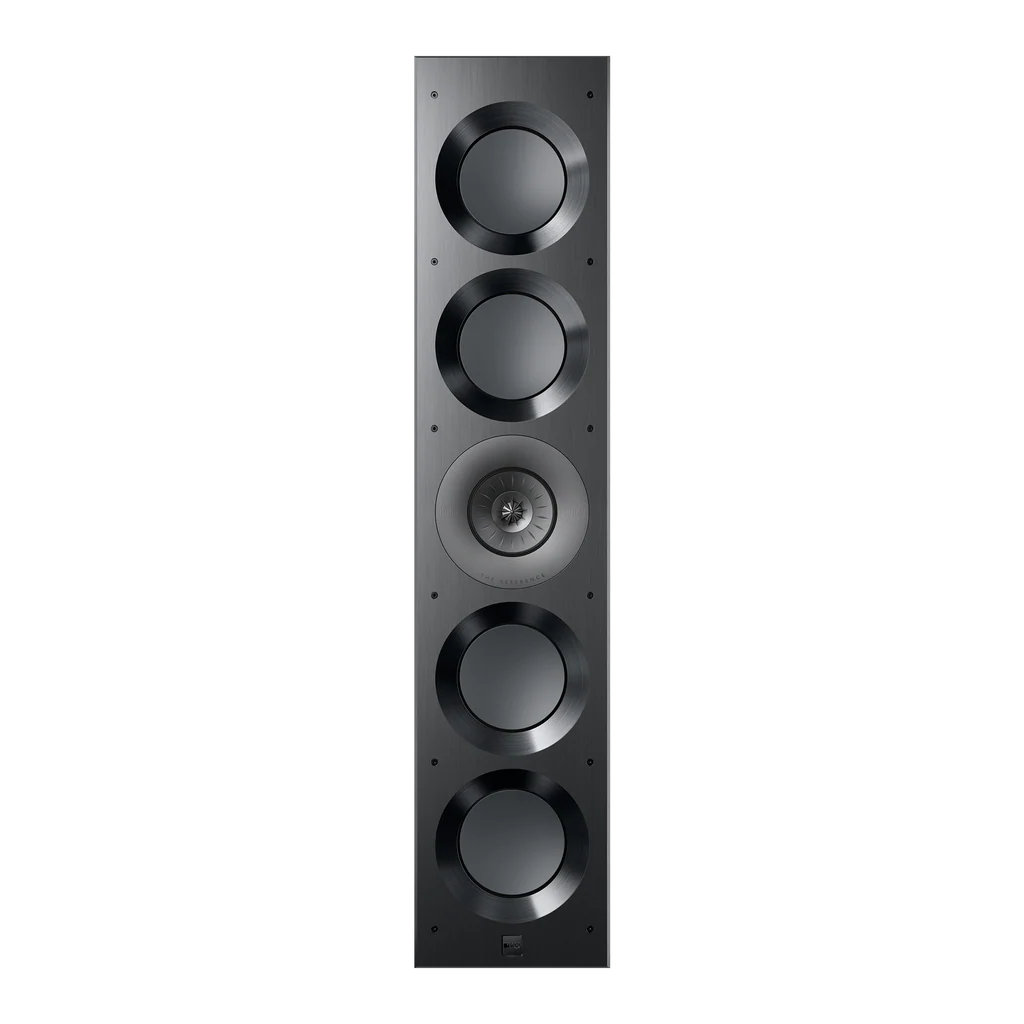

KEF Ci5160RL THX Architectural/Inwall Speaker (Each)
Product Description
- Features KEF’s patented Uni-Q driver array.
- Ci5160RL-THX is crafted with a massive aluminium baffle to eliminate vibration.
- The KEF Ci5160RL-THX is an in-wall speaker certified to THX ULTRA2 standards.
- THX certified 2.1, 5.1 and 7.1 speaker system.
- A perfect platform for the 160 mm aluminium cone Uni-Q with tangerine waveguide, and four 160mm woofers.
General
| Brand | KEF |
| Model | Ci5160RL |
| Color | black |
| Specifications | |
|---|---|
|
Nominal Impedance
|
4 Ohms
|
|
Sensitivity
|
90 dB (2.83V/ 1m) |
|
Frequency Response
|
40 Hz – 28 kHz (±6dB) open backed |
|
Crossover Response
|
300 Hz, 2.4 kHz |
|
Drive Units
|
LF: 4 x 160mm (6.5 in.)
MF: 160mm (6.5 in.)
HF: 25mm (1 in.) Uni-Q
|
|
Recommended Amplifier Power
|
40 – 250 W |
|
Cut-Out Dimensions (H X W)
|
1052 x 209 mm (41.42 x 8.23 in.)
|
|
Mounting Thickness
|
Ceiling Thickness (Maximum): 40mm (1.58 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)
|
|
Mounting Depth From Surface
|
99 mm (3.9 in.) |
| Dimension | |
|---|---|
| Dimension |
1070 x 230 x 105.7 mm (42.13 x 9.06 x 4.16 in.)
With Grille : 1073 x 242 x 112.4 mm (42.24 x 9.53 x 4.43 in.)
|
| Weight | 19 kg |
| Warranty | |
|---|---|
| Warranty Type | Manufacturers |
| Warranty Period | 2 Years |
