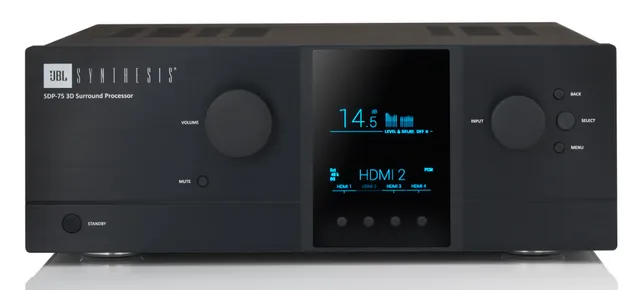

JBL Synthesis SDP-75 Digital Audio Processor

Description

 JBL Synthesis SDP-75 is a 32 Channel Digital Audio Processor for Luxury Home Cinema

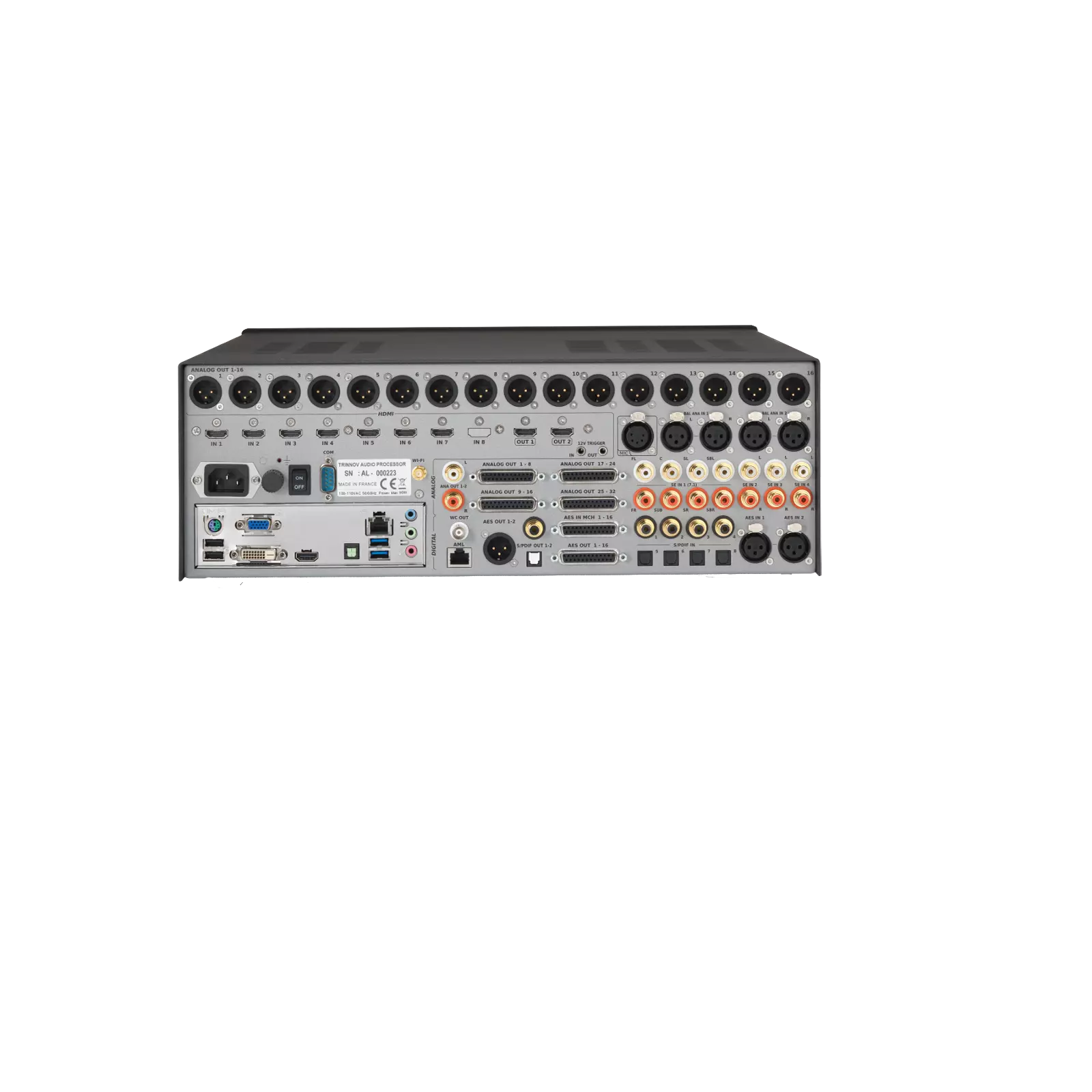

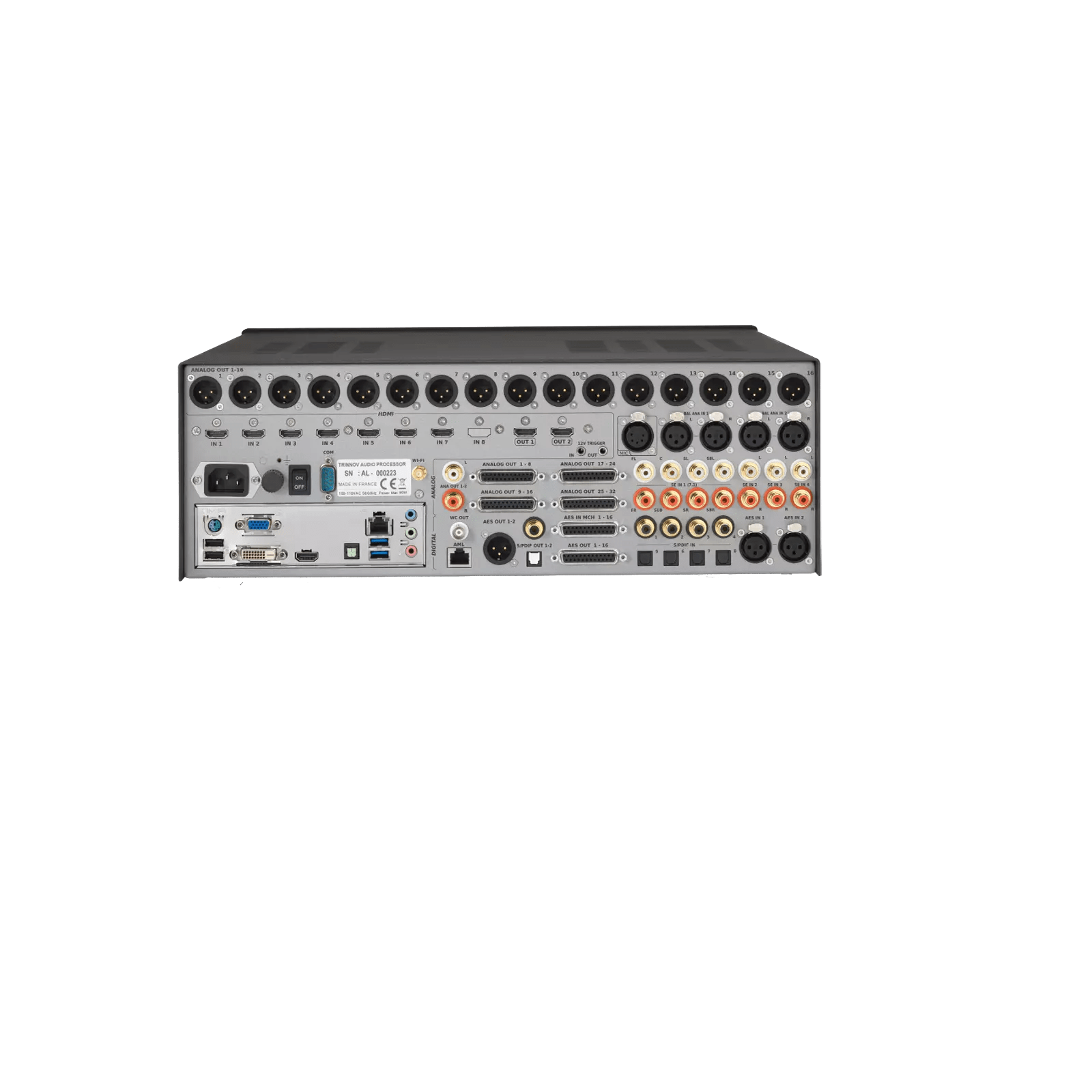

Featuring 32,24 or 16 Channel digital Audio Processor,118 Digital and Analog inputs and 80 Audio outputs, 8 HDMI inputs and 2 HDMI outputs; In 25 source preamps; 7x HDMI inputs(4 programed for HDMI 2.0, 3 programed for HDMI 1.4 compatibility )  3xRCA Stereo,1×16 AES channels on DB25; 2x XLR stereo; 4x SPDIF coaxial on RCA ; 1x RCA 7.1; 4x SPDIF optical on TOSLINK;1x 3D microphone input; 2x AES/EBU on XLR; Out up to 32 simultaneous outputs; 2x HDMI outputs; 32x balanced on 4x DB25; 16x AES channels on DB25; 16x balanced on 16x XLR; 1xABS/EBU on XLR; 1x RCA Stereo; 1x SPDIF coaxial; 1x SPDIF optical; 1 AML Extension Link.

Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X, Auro 3D, LPCM Audio 16 channels AES compatible with digital cinema servers; Dolby atmos extraction of Dolby atmos/7.1 AES/DCI Audio from digital cinema servers; UPnP/DLNA renderer WAV, AIFF, OGG, FLAC up to 24bits/192 kHz; anechoic EQ for popular Revel and Jbl Synthesis loud speakers; Automated multi point room EQ utilizing the Trinnov Optimizer with custom HARMAN operating parameters; Simple drop-down loudspeaker selection; exclusive Harman EQ targets based upon industry leading HARMAN X research; state of the art Bass Management; easily set different high-pass and low-pass frequencies and slopes for each pair of speakers; IMAX Enhanced media as the film maker intended; DTS:X Pro with up to 32 Channels
