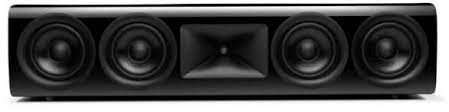

Quadruple 5.25-inch (130mm) 2 ½-way Center Channel Loudspeaker

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-4500 is the anchor of a complete HDI Series surround system. This center channel loudspeaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and quadruple 5.25-inch (130mm) Advanced Aluminum Matrix cone woofers for powerful dynamics and incredibly accurate sound reproduction.

Patented 2410H-2 1″ (25mm) compression driver with High Definition Imaging ™ geometry horn.

5.25″ (130mm) Advanced Aluminum Matrix cast-frame woofers.

Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers.

General Specifications

Enclosure Type                                                                                 Bass-reflex design with rear-firing port

High Frequency Transducer                                                            1-inch (25mm) Teonex compression driver

Low / Mid Frequency Transducers                                                 Four 5.25-inch (130mm) black Advanced Aluminum                                                                                                                   Matrix cone, cast frame woofers

Crossover Frequency                                                                       600Hz, 2200Hz

Sensitivity                                                                                          (2.83V @ 1M)90dB

Nominal Impedance                                                                         4 Ohm

Recommended Amplifier Power                                                      20W – 250W

Frequency Response                                                                         50Hz – 30kHz (-6dB)

Dimensions (H x W x D)                                                                    7.48 x 33.13 x 12.3” (190 x 841.4 x 312.5mm)

Net Weight44.33 lbs                                                                         (20.11kg)
