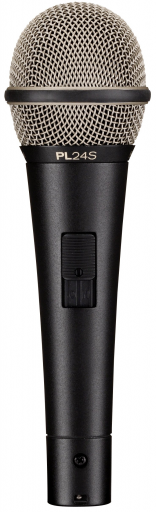

Electro Voice PL-24S Dynamic Supercardioid Vocal Microphone

PL-24S

Dynamic Supercardioid Vocal Microphone

• Balanced frequency response
• Supercardioid polar pattern
• Powerful Neodymium magnet structure
• Shock mounted capsule and low handling noise
• On-off switch
• Tight mesh Memraflex grill
• The PL24S is a professional-grade supercardioid dynamic vocal microphone designed to capture the character of voice in live sound applications. Adding the benefit of an on/off switch, coupled with its balanced frequency response, the PL24S’s sonic performance is robust and articulate, and delivers all around vocal clarity in any live sound situation.

• SPECIFICATIONS

  Element Type	Dynamic, Neodymium Magnet Structure
  Frequency Response	80 Hz – 16,000 Hz
  Polar Pattern	Supercardioid
  Sensitivity, Open Circuit Voltage, 1 kHz	2.2 mV/Pa (-53 dBV)
  Polarity	Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
  Impedance	600 ohms
  Microphone Connector	3-pin, XLR-type
  Finish	Textured black satin handle with Memraflex grille
  Dimensions	Length = 7.23” (184.0 mm) Width = 2.10” (53.0 mm) Shank = 0.93” (23.6 mm)
  Accessories Included	Stand adapter with Euro-thread insert, Soft zippered gig bag
  Net Weight	10.4 oz (294 g)
  Shipping Weight	19.3 oz (547 g)
