Description

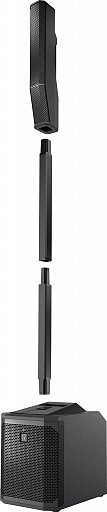

EVOLVE 30M

Portable powered column system

• Optimize every detail of your sound
• Room-filling coverage
• Super-quick setup
• Single-trip portability
• Available in black or white

• Superior Electro-Voice sound quality coupled with the most complete feature set in its class – the perfect combination of performance and flexible functionality, in a very compact package

  The EVOLVE 30M is designed to deliver a significant step up in all-around performance for a column system in its size/price category. It includes an eight-channel digital mixer, studio-quality onboard effects, and remote control of all audio, effects and mix functions via the next-generation Electro-Voice QuickSmart Mobile application (available via the Apple Store and on Google Play).

• SPECIFICATIONS

  Frequency response (-3 dB)1	51 Hz to 20 KHz
  Frequency range (-10 dB)1	45 Hz to 20 KHz
  Maximum SPL2	123 dB
  SPECIFICATIONS

  Coverage (H x V)	120° x 40°
  Amplifier rating	1000 W
  LF channel rating	500 W
  HF channel rating	500 W
  Crossover frequency	200 Hz
  Connectors	4x XLR/TRS Combo Jack Line / Mic Input 1x 1/4″ TRS HI-Z input 2x XLR/TRS Combo Jack for Stereo Line Input 1x Stereo RCA Input 1x 3.5 mm Stereo Input 1x Wireless Stereo Bluetooth® Audio Input 1x 1/4″ Foot Switch Input 1x XLR MIX OUT Output 1x XLR AUX OUT Output
  Enclosure	Sub: 15 mm plywood Column: Composite Pole: Aluminum Grille: Steel with black or white powder coat
  Color:	Black or white
  Dimensions (HxWxD): mm (in)	Sub: 448 x 332 x 432 (17.6 x 13.1 x 17) Column: 620 x 95 x 157 (24.4 x 3.7 x 6.2) Pole (2 pcs): 600 x 48 x 55 (23.6 x 1.9 x 2.2)
  Net weight	Sub: 34.9 lb (15.8 kg) Column: 6.0 lb (2.7 kg) Pole (2 pcs): 3.1 lb (1.4 kg) Bag for column and pole: 1.9 (0.85 kg)

  Shipping weight	53.4 lb (24.2 kg)
  Power consumption3	100-240 V AC, 50-60 Hz, 1.5-0.6 A
