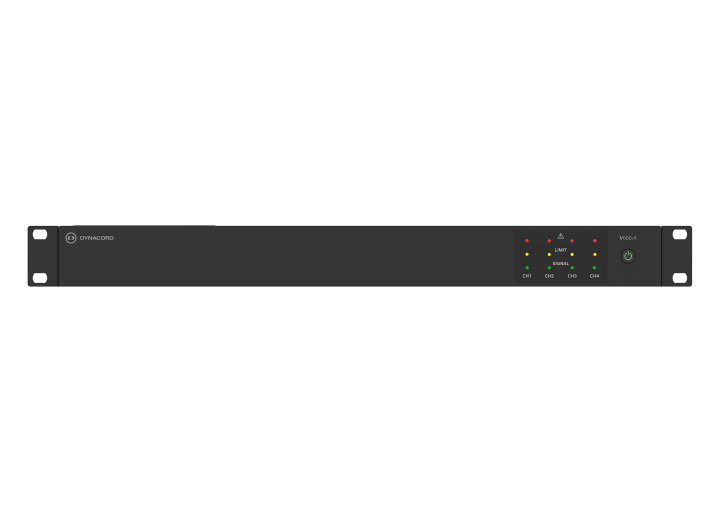

Dynacord V600:4 Multichannel Power Amplifier

201,603.00 224,004.00

Description

Dynacord V600:4 Multichannel Power Amplifier

V600:4

Multi-channel power amplifier for commercial installations

  • Versatile, lightweight four-channel power amplifier at an attractive price point, recommended for background music and announcements in small to mid-sized commercial installations
  • Unique Dynacord technologies for reduced cost of ownership, with low energy consumption and flexible power-load allocation
  • Easy handling and trouble-free amplifier operation – even under demanding power conditions – in a compact 1RU form factor
  • The V600:4 is perfect for small to mid-sized installation scenarios such as education, hospitality, retail, houses of worship and more. The four-channel power amplifier with a total power of 600 Watts is recommended as a go-to power amplifier for consultants, installers and specifiers who are looking for a sturdy, extremely versatile amplifier that is quick to install and runs trouble-free – even under demanding power conditions.

    With a compact 1RU form factor requiring minimal rack space, the V600:4 is fully equipped with best-in-class features and innovative new Dynacord technologies to offer building owners an optimal combination of real professional performance and resource-efficient power consumption, all at a very attractive price point. The newly developed Dynacord powerTANK technology adds even more installation flexibility, working like a power reservoir for the amplifier. With direct access to the total power of 600 Watts, the V600:4 can deliver asymmetric power across all channels as needed. There is no waste of energy, which allows great flexibility – especially when driving multiple audio zones with different loads. For example, a single V600:4 can simultaneously serve as system drive for the compact loudspeakers in a small zone (such as a kitchen area) as well as for larger loudspeakers (such as in an auditorium). Contributing to the ease of installation, this feature does not require any special configuration skills – powerTANK engages automatically. In conjunction with a DSP matrix – such as the Dynacord MXE5 Matrix Mix Engine – the V600:4 can also be specified for larger distributed installations working as a distribution amplifier for smaller zones.

    Features



    powerTANK
    powerTANK is a reservoir of available amplification power that is deployed flexibly across the 4 channels of the amplifier. There is no need to set up the powerTANK as it adapts to the requirements of each zone or output without extra manual configuration of each individual channel.

    Variable Load Drive
    Variable Load Drive (VLD) ensures that the powerTANK capacity is utilized efficiently, providing consistent power to any channel with any impedance. dualCOOL The dualCOOL thermal design means that the amplifier typically operates as a convection cooled amplifier, but in extreme thermal conditions the amplifier is also equipped with an intelligent multi‑speed fan to ensure maximum performance and reliability in any application.

    ecoRAIL
    ecoRAIL’s power consumption is similar to a regular standby level, yet ecoRAIL still produces audio output suitable for background music levels, and the Auto Power Down (APD) mode can be engaged to further reduce power consumption to less than a watt when there is no signal present for extended periods.

    PFC power supply
    Equipped with a PFC power supply and protection features usually reserved for the professional power amplifiers, means that the amplifier resists complete shutdown situations and will always perform at its best under all conditions.

    SPECIFICATIONS

    ELECTRICAL
    Total rated output power1 600 W
    Number of channels 4
    Rated output power1 4 x 150 W
    Output power: 4 Ω / 8 Ω / 70 V / 100 V
    Maximum output power per channel (power sharing) 500 W / 600 W / 500 W / 600 W

    SPECIFICATIONS

    AMPLIFIER
    4 Ω / 8 Ω / 70 V / 100 V
    Nominal Gain
    (+6 dBu input sensitivity, LEVEL 0 dB)
    24.0 dB / 27.0 dB / 33.2 dB / 36.2 dB
    Signal to Noise Ratio
    (A‑weighted, ref. to rated output power, LEVEL 0 dB)
    > -98 dB / > 100 dB / > 101 dB / > 103 dB
    THD+N
    (1/8 RATED OUTPUT POWER, 1 KHZ)
    < 0.1 %

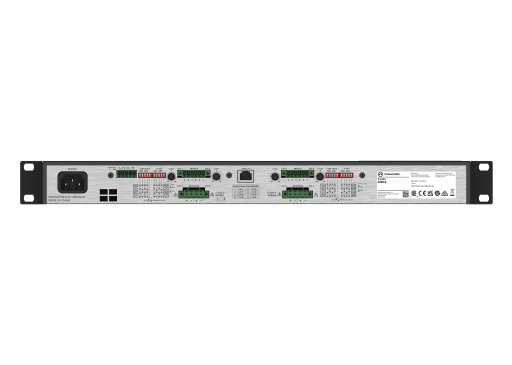

    CONNECTIVITY
    Type 2 x 6-pin Euroblock, 3.81 mm, male,
    parallel 1x RJ45 (AES72-1E)
    Loudspeaker output 2 x 4-pin Euroblock, 5.08 mm, female
    Control port type 1 x 5-pin Euroblock, 3.81 mm, male
    GENERAL
    Signal processing Input Routing, Filter (24 dB/Oct.), Hi-pass 30/50/100/150 Hz, Lo-pass 150 Hz, Peak Limiter
    Power requirements 100 V to 240 V, 50 Hz to 60 Hz AC
    Power consumption:
    Idle mode (ecoRAIL with no input signal) < 20 W
    Consumption at 1/8 rated output power 115 W
    Standby mode (APD active) < 1 W
    Protections Audio limiters, high temperature, DC, HF, short circuit, back-EMF, peak current limiters, inrush current limiters, mains over/under voltage protection
