Description

HEOS Drive _HS2

• NEW High Resolution Audio Support
• Designed by CI specialists for Custom Integration professionals
• Create 4 separate HEOS zones
• 8 Channels Class D amplification
• FEATURES – HEOS DRIVE _HS2
  Whole home multi-zone audio in a single chassis.

  Designed by custom integration specialists for custom integration professionals, HEOS Drive HS2 is a unique 4 zone whole home audio distribution system with 8 channels of Class D amplification, all in a 2RU single chassis that features both Dolby Digital and Dolby Digital+ decoding with stereo downmixing.

  Rated at 60 watts per channel into each of the 8 channels (20Hz~20kHz, .05% THD, 8 ohms, All Channels Driven), 1 or 2 stereo amp pairs can be bridged for single channel high power output (130 watts), and the HEOS Drive HS2 features low impedance drive capability (4 ohms).

  Each zone features a stereo pair of pre-amp outputs, and each zone can be configured for stereo or mixed mono output. The matrix switching system features 2 optical digital inputs, 2 coaxial digital inputs and 4 analog stereo inputs, any of which can be assigned to any zone, and every zone features a dedicated USB port for connection to an external USB drive.

  Equipped to handle virtually any combination of speaker configurations, HEOS Drive HS2 features built-in DSP high pass/low pass filters – set any output to full range, subwoofer or satellite speaker modes, with adjustable crossover points.

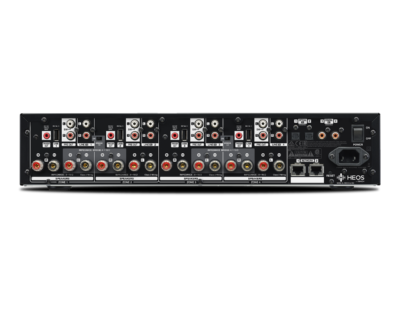

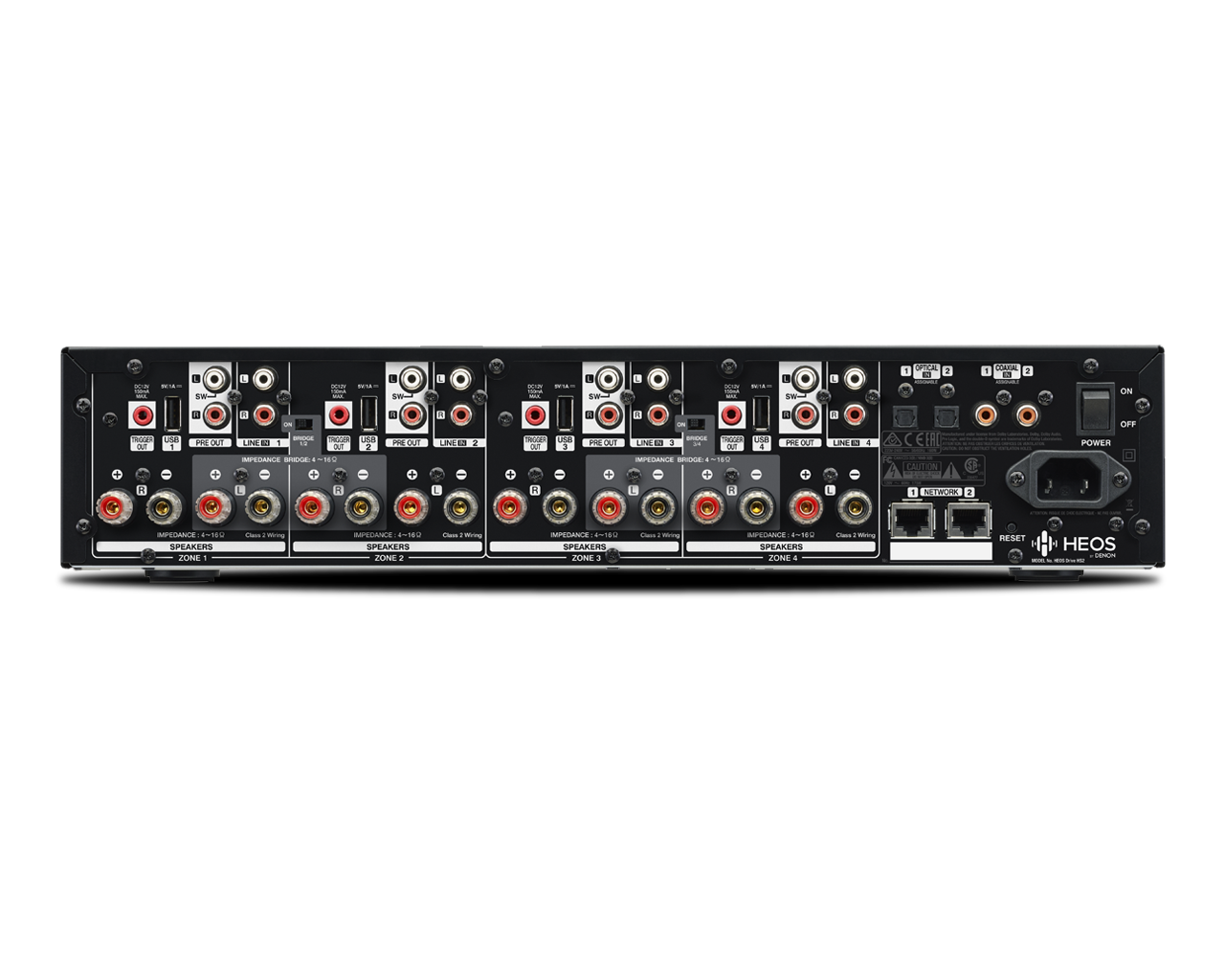

  The speaker outputs feature 4-way binding posts that are compatible with banana plug terminations, and there are 4 12V trigger outputs. The chassis features quiet fan cooling for long term stability and operational reliability.

  Dual RJ-45 Ethernet LAN ports are provided, for connection to the network and sharing the internet connection with other devices, and HEOS Drive HS2 is 3rd party control compatible.

  HEOS Drive HS2 comes with removable feet and attachable rack ears, allowing rack or shelf placement.

  Once installed and connected, HEOS Drive HS2 setup and configuration is fast and easy via our HEOS app (iOS and Android).

  • Whole home amplified multi-zone audio (4 HEOS zones)
  • 8 Channels Class D digital amplification; 60 wpc 8 ohms; 4 ohms compatible; bridge mode
  • Pre-amp outputs for each zone
  • Dual RJ-45 Ethernet LAN ports
  • Stereo/Mono selectable output
  • Only 2RU high; removable rack ears included
  • 3rd Party Controllable
  • TV-Sound Grouping allows you to enjoy TV sound throughout the HEOS ecosystem
  • Dolby Digital/Dolby Digital+ downmixing to stereo
  • very room can have its own HEOS sound. Or, group multiple devices to fill the house with the same song. Multi-room means multiple options.
    Learn more

    APPS & STREAMING SERVICES

    AMAZING SOUND QUALITY

    EASY SETUP

    HEOS + Alexa – Speak Your Commands

    Google Assistant

    SPECS – HEOS DRIVE _HS2

    Audio System

    AMPLIFIER SECTION8 Channels Class D Digital Amplification
    60 watts per channel (20Hz~20kHz, .05%THD, 8 ohms, All channels driven)

    Bridged Amplifier Mode130 watts per channel

    PRE-AMP SECTION4 Pairs Stereo Pre-amp Outputs
    Drive external power amplifiers

    4 USB Ports1 for each zone

    Music Sources

    Music Subscription ServicesThe HEOS app lets you choose from popular subscription streaming services including Rhapsody, Pandora, Spotify and TuneIn, iHeartRadio, SiriusXM, and from other services that offer DRM-free tracks. More services will be added soon.

    Internet Radio StationsChoose from your favorite internet radio stations and listen to MP3, AAC and WMA streaming audio tracks.

    Music Formats SupportedHEOS Drive HS2 supports MP3 and WMA music files, including purchased WMA downloads, as well as AAC (MPEG4) and FLAC (lossless) file types, along with WAV files. Supports 32 kHz, 44.1 kHz and 48 kHz sampling rates.

    Picture Formats SupportedHEOS Drive HS2 supports JPG, PNG, BMP and GIF album art picture formats.

    USB Drives SupportedHEOS Drive HS2 supports USB thumb drives via the built-in USB port. Music content on a USB drive can be played back locally, or on any or all HEOS players on your network.

    “Availability of music services may vary by region. Not all services may be available at time of purchase. Some services may be added or discontinued from time to time based on decisions of the music service providers or others. Visit usa.denon.com/us/heos for announcements and details.”

    Networking

    Wired Connection Connect to the network using 1 of the 2 RJ-45 wired LAN ports.

    General

    Power Supply                                              100~240 Volts AC, 50~60 Hz auto-switching

    What’s In The Box                                       HEOS Drive HS2, AC power cord x 4, Ethernet Cable, Quick Start Guide, 2 rack ears

    Controls & Indicators                                  Power/standby; Ethernet status 1/2; Zones 1~4 active status

    Weight                                                         15.9 lbs ; 7.2 kg

    Multiple Language Support                        English, French, Spanish

    Dimensions                                                 (H x W x D)88mm x 430mm x 402 mm (without rack ears)
    88mm x 483mm x 402 mm (with rack ears)
    3.5 x 17 x 15.6 inches (without rack ears)
    3.5 x 19.125 x 15.6 inches (with rack ears)

    Operating Temperature Range41°F~95°F; 5°C~35°C

    Product FinishBlack
