Supports 8K video with the latest 1GHz DSP and HDMI technologies.
Weighing in at more than 32kg, the A1H powers 210W per channel.

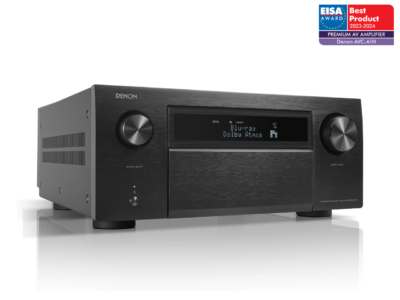

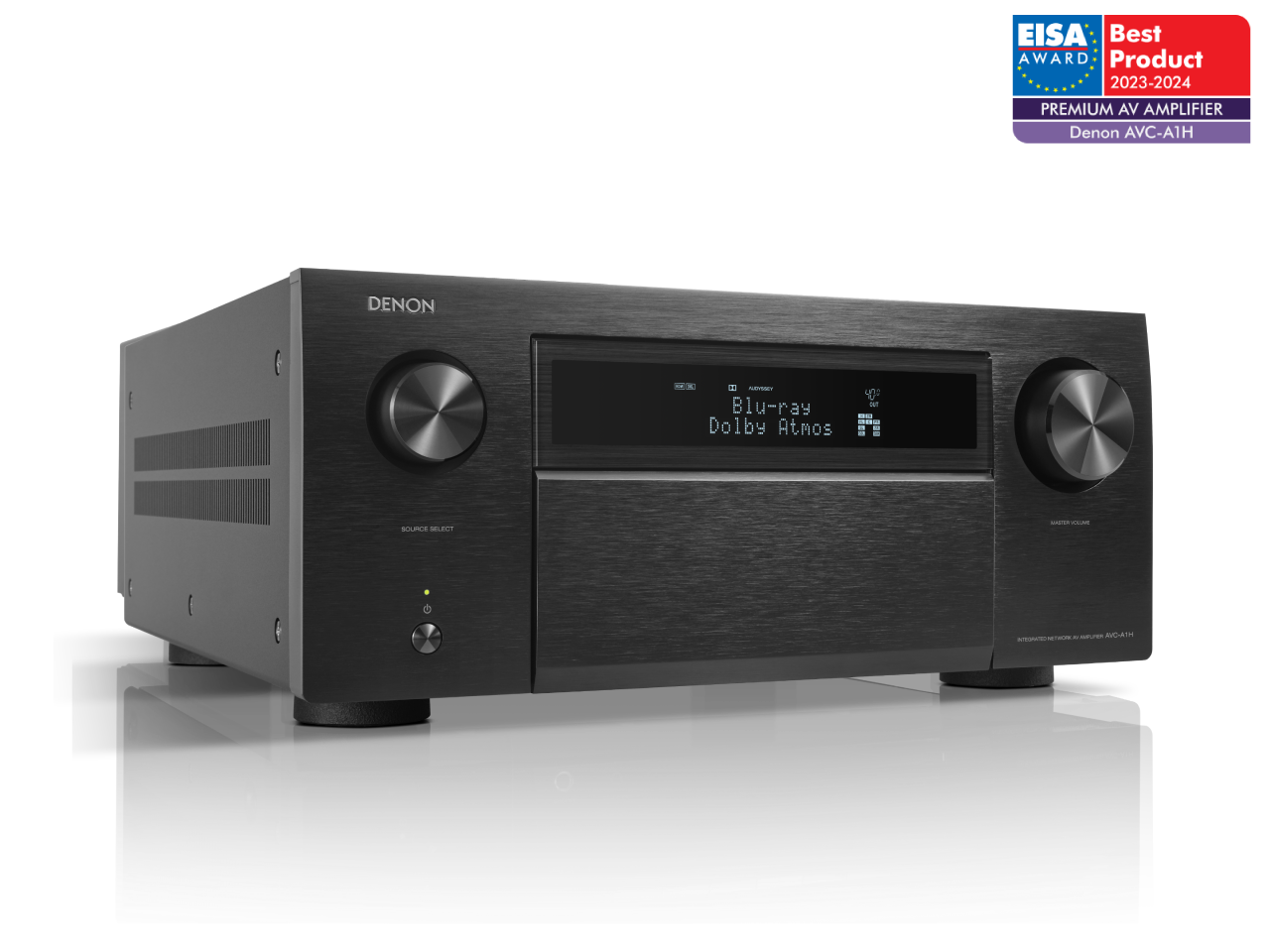

AVC-A1H
Optimized for high-impact audio experiences
The world’s first 15-channel AV receiver delivering up to 210W per channel.
The largest power transformer we have ever used and new, larger capacitors make AVC-A1H respond quickly and dynamically to your music to reproduce audio as the artist intended.
Audiophile grade two-channel DAC for all 19 channels, hefty gold-plated speaker terminals, cast iron feet, and rigid construction protects against vibration and interference, greatly reducing noise impacts.
Dirac Live® Room Correction applies state-of-the-art, patented algorithms to analyze and digitally reduce room impact and enhance speaker performance. Upgrade subwoofer performance with Dirac Live® Bass Control.
Tailor your sound with complete connectivity & control
Every element of a Denon product is thoughtfully crafted to deliver an unforgettable audio experience.
- Multi Channel Surround
- DTS HD Master, DTS:X, DTS:X Pro Yes, Yes, Yes
- DTS Neo:X, DTS Neural:X No, Yes (15ch)
- DTS Virtual:X Yes
- IMAX Enhanced Yes
- Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music Yes, Yes, Yes, Yes
- Dolby ProLogic Ilz, Dolby SurroundNo, Yes
- Auro 3D Yes
- 360 Reality Audio / MPEG H Yes, Yes
- Multichannel Stereo Yes
- Max. Number of Processing (Pre-Amp) Channels15.4
- Sound Enhancements
- Mono Block Power Amp ConstructionYes (L/R separated)
- Discrete Power Amplifier Yes
- D.D.S.C. HD Digital Yes (32 bit)
- Pure Direct Yes
- Gold-Plated RCA Terminals Yes
- Clock Jitter Reducer Yes
- Alpha ProcessingAL32 Processing Multichannel
- AudysseyMultEQ XT32
- Audyssey Dynamic EQ, Dynamic Volume Yes, Yes
- Audyssey LFC Yes
- Dirac Live Upgradability Yes
- Compressed Audio Restorer Yes
- Network
- Media Serve rYes
- HEOS Wireless Multi-Room Technology Yes
- Bluetooth Re-transmit for Bluetooth headphones Yes
- Alexa / Google Voice Assistant / Apple HomePod Yes, Yes, Yes
- Lossy Formats: MP3, WMA, AAC Yes, Yes, Yes
- Lossless Formats: FLAC, ALAC, WAV Yes, Yes, Yes
- Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) Yes, Yes, Yes
- DSD Audio Streaming Yes (2.8/5.6MHz)
- AirPlay 2 Yes
- TuneIn Yes
- Spotify Connect Yes
- Pandora Yes
- SiriusXM* Yes
- Roon Tested Yes
- HEOS App Control Yes
- Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
- Ethernet Ports Yes
- Wi-Fi Yes
- Bluetooth Yes

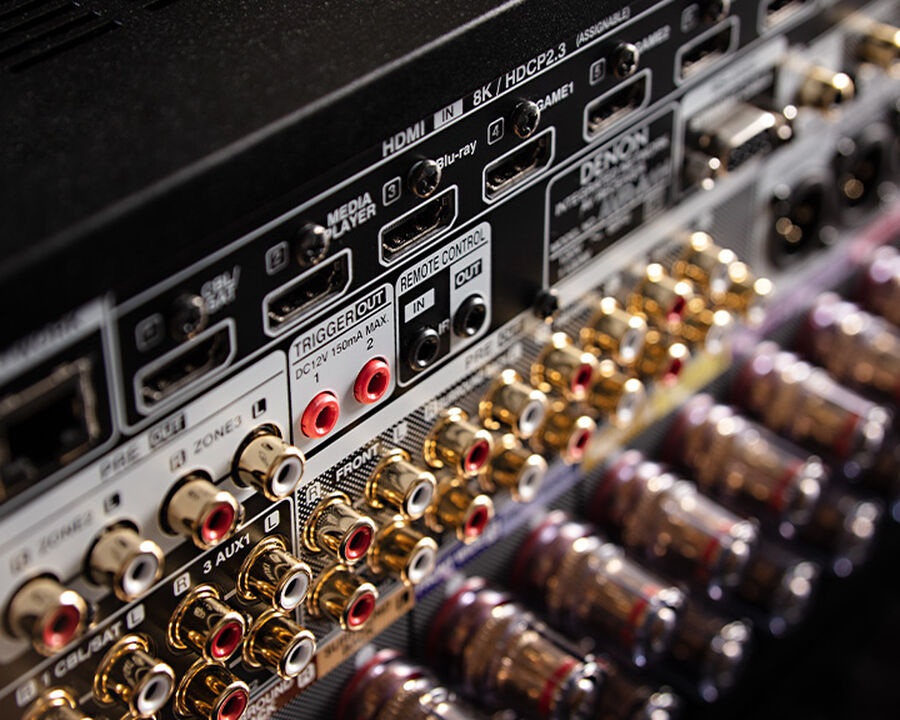

- HDMI
- HDMI Inputs: Back, Front7, No
- HDCP2.3 support Yes
- HDMI Outputs: Main, Zone2, 1
- HDMI In, Out7, 3
- HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB Yes, Yes
- HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR Yes , Yes, Yes, Yes, Yes
- ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
- Variable Refresh Rate, Quick Frame Transport, Quick Media Switching Yes, Yes, No
- 3D Signal Pass-through Yes
- 8K Signal Pass-Through, Scaling, GUI Overlay Yes, Yes, Yes
- DSD Audio Capability Yes
- Audio Return Channel (ARC), Enhanced ARC Yes, Yes
- Auto LipSync Yes
- Multi Room/CI
- Multi-Room Zones3
- Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analogue Yes (2ch), Yes (2ch), Yes, Yes
- Zone Audio Output: Speaker, Pre-Out Yes, Yes
- Zone HDMI Output from HDMI Source Yes
- IP Control, RS232 Control, Web Control, App Control Yes, Yes /Yes, Yes
- Remote In / Out Yes, Yes
- DC Trigger Output2
- HDMI Diagnostics Yes
- Others
- Auto Speaker Setup by MicrophoneAudyssey MultEQ XT32
Dirac Live (upgrade)
- Front Display2-Line FLD
- GUI Languages3
- Setup Assistent Yes
- Quick Select Plus, Quick Select Yes, No
- Variable Crossover Yes
- Optimized Bass Redirection Yes
- Bass Sync Yes
- ECO Mode Yes
- Auto Power Off Yes
- Sleep Timer Yes

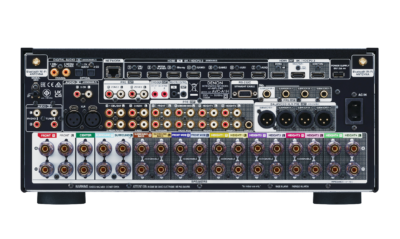

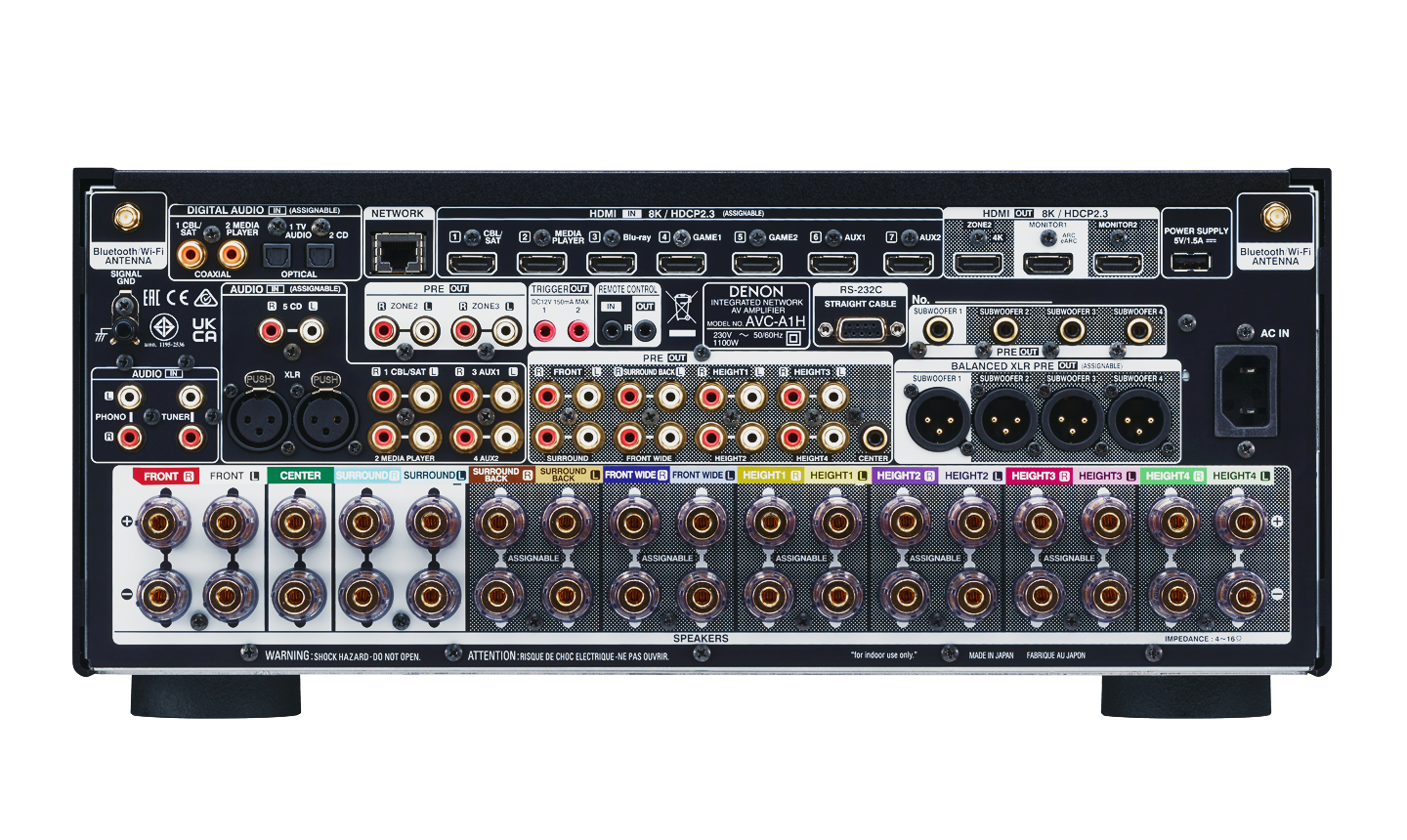

- Inputs Outputs
- VIDEO
- Multi-Room Video Out: Video, HDMI No, Yes
- AUDIO
- Analogue In, Out5 (1x XLR), No
- Phono (MM) In Yes
- Digital In: Optical, Coaxial2, 2
- Multi-Room Out: Analogue, Digital2, No
- Multichannel Pre-Out Yes (17.4)
- Subwoofer Out4 (independent)
- OTHER
- Speaker Terminal: Gold-Plated Screw, Regular Screw Yes, No
- Number of Speaker Terminals17
- Speaker A / BAssignable
- Bi-amp DriveAssignable
- Multi-Room Speaker TerminalAssignable
- Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB No, No, No, No, Yes
- USB Audio, Made for iPod, Made for iPhone Yes, No, No
- AM/FM Tuner Yes
- Specifications
- Number of Power Amps15
- Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive)No
- Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive)150W
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)190W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive)210W
- General
- Metal Front PanelYes
- System Remote ControlRC-1250
- Pre-Programmed, Learnable, LCD DisplayNo, No, No
- Power Consumption in W1100
- Power Consumption No-Sound (ECO On / Off) in W80 W / 160 W
- Standby Consumption in W0.1
- CEC Standby Consumption in W0.5
- Network Standby Consumption in WLess than 2.0
- Maximum Dimensions
Antenna: Horizontal: (W x D x H) in mm
Antenna: Vertical: (W x D x H) in mm
w/o Antenna: (W x D x H) in mm434 x 498 X 195
(434 x 498 X 259)
【 434 x 493 x 195 】
- Weight in kg32.0
- Carton Weight (inc. product) in kg38.0
