Description

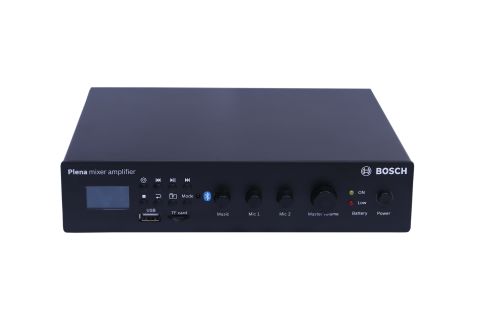

Mixer amplifier portable, 30W PLE-1MP30-IN

• Bluetooth, USB, FM and TF card slot for audio streaming

• Variable ducking option

• Supports 12/24V battery power supply

• Low battery indication

• Phantom power supply support

• Key Specifications

  Adapter	19 V ± 5%, ≥ 65 W output, 230 V / 50 Hz input
  Battery	12 V ± 5%, ≥ 35 Ah24 V ± 5% ≥ 35 Ah
  Frequency response	20 Hz to 20 kHz (+1/-3 dB @ -10 dB of rated output)
  Distortion	<1% @ rated output power
  Ducking range	0 dB, -6 dB to -24 dB (+1 dB/-3 dB), Mute
  Connector	3.2 mm RCA mono jack
  Input impedance	> 10 kΩ
  Sensitivity	200 mV +1 dB / -3 dB
  S/N	> 70 dB
  Headroom	> 25 dB
  Connector	1/4″ TRS stereo jack
  Input impedance	> 1 kΩ
  Sensitivity	1 mV +1 dB / -3 dB
  CMRR	> 50 dB
  S/N	> 60 dB
  Headroom	> 25 dB
  Connector	1/4″ XLR combo connector
  Input impedance	> 1 kΩ
  Sensitivity	1 mV +1 dB / -3 dB
  CMRR	> 50 dB
