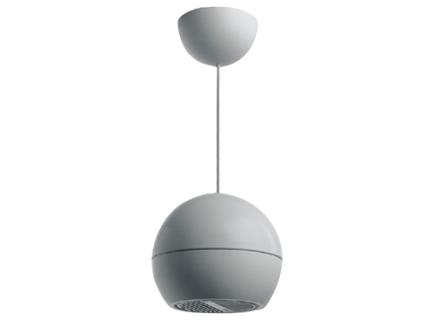

Bosch LBC 3095/15 Pendant Sphere Loudspeaker, 10W

Pendant sphere loudspeaker, 10W

• Suitable for speech and music reproduction
• Simple power setting
• 5 m fixed connection cable
• Water and dust protected
• Robust self-extinguishing ABS enclosure to UL 94 V0
• Complies with international installation and safety regulations

• Key Specifications

  Maximum power	15 W
  Rated power	10 / 5 / 2.5 W
  Sound pressure levelat 10 W / 1 W (1 kHz, 1 m)	98 dB / 88 dB (SPL)
  Opening angle at 1 kHz / 4 kHz (-6 dB)	216° / 103°
  Effective frequency range (-10 dB)	120 Hz to 20 kHz
  Rated voltage	100 V
  Rated impedance	1000 ohm
  Connection	5 m (196.85 in) 4-core fixed cable (4 x 0.5 mm2 / 20 AWG)

  Dimensions (D x L)	185 x 157 mm (7.3 x 6.2 in)
  Weight	1.64 kg (3.61 lb)
  Color	White (RAL 9010)
  Material	ABS

  Operating temperature	-25 ºC to +55 ºC (-13 ºF to +131 ºF)
  Storage and transport temperature	-40 ºC to +70 ºC (-40 ºF to +158 ºF)
  Relative humidity	<95%
