Bosch LBB 1941/00 Call Station, All-Call

Description

Bosch LBB 1941/00 Call Station, All-Call

• Stylish all-call call station, intended for LBB 1925/10 system pre-amplifier
• Unidirectional condenser microphone on flexible stem
• Momentary PTT‑key for calls
• Selectable gain, speech filter, and limiter for improved intelligibility
• Stable metal base design
• Fixed 5 m cable and loop-through connector for additional call stations

• Key Specifications

  Dimensions (H x W x D) (mm)	40 x 100 x 235 mm
  Operating temperature (°C)	-10 – 55 °C
  Weight (kg)	1 kg

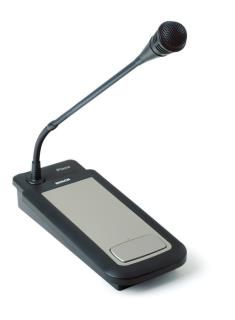

  The Plena Call Station is a stylish, high-quality call
  station with a stable metal base design, a flexible
  microphone stem, and a unidirectional condenser
  microphone. Its purpose is to make calls to all zones
  (all-call) in a public address system built around the
  LBB 1925/10 system pre-amplifier. In addition to
  tabletop use, the special design enables the unit to be
  neatly flush-mounted in desktops.
  Functions
  A green LED on the call station gives visible feedback
  on the active state of the microphone.
  This call station features selectable gain, a selectable
  speech filter, and a limiter for improved intelligibility,
  even when the speaker moves in front of the
  microphone.
  The call station provides a balanced line-level output,
  and can be up to 500 m away from the amplifier using
  extension cables. The LBB 1925/10 can assign
  different priority levels, and pre and post-call chimes
  to this call station.
  Controls and indicators
  • PTT-key
  • PTT status LED
  Interconnections
  • Cable with DIN connector
  Certifications and approvals
  Safety acc. to EN 60065
  Immunity acc. to EN 55103-2
  Emission acc. to EN 55103-1
  Region Certification
  Europe CE
  Parts included
  Quantity Component
  1 LBB 1941/00 Plena Call Station
  1 5 m cable terminated with a lockable 8‑pin DIN connector
  1 Loop through 8‑pin DIN socket to add an additional call
  station LBB 1941/00 or LBB 1946/00
