Bosch CCSE-CU-CCS700 Conference Control unit

Description

Bosch CCSE-CU-CCS700 Conference Control unit

• Better discussion control
• Controls up to 50 Discussion units
• 3-Band equalizer for better sound performance
• Audio interfaces for connecting external audio equipment
• Bosch CCSE-CU-CCS700 Conference Control unit Ultro Discussion System is suitable for use in meetings and conference venues with a limited number of participants. BOSCH CCSE-CU CCS700 Conference Control unit (CU) is the heart of the CCS700 Ultro Discussion System and supplies the power for all delegate and chairman units in the system. The unit also controls the chairman and delegate unit microphones, as well as providing interfaces for external audio equipment. The CCS700 discussion system is a plug and play solution for the audio conference requirements.

  Functions

  Discussion control

  Bosch CCSE-CU-CCS700 Conference Control unit supports almost any kind of small or medium meeting. For business discussions and small conferences, two to six microphones can be active simultaneously, with the chairman always having speaker priority. The active microphone selection knob on the rear panel can be used to select the number of active participants. Unused microphones are switched off automatically after 65 seconds if delegates forget to switch off their units.

  Supplies power for up to 50 Discussion units
  The CU has two trunk outputs for the loop through connection of discussion units. It is possible to connect a maximum of 25 discussion units to each trunk output in open loop configuration. Maximum trunk length supported by CU is 100m in open loop configuration. For closed loop configuration with 50 discussion units the loop length can be extended up to 200meter. A maximum of 50 discussion units can be connected to a CU.

  Better sound
  The conference controller has a 3-band equalizer for tuning sound output of the system. This helps in quickly tuning the system to compliment the hall acoustics at different venues. This ensures optimum performance at all times.

  Audio Interfaces
  The CU can be interfaced with different type of devices like external audio recorder, sound reinforcement system, external microphones and external music player. The headphone output on the front of the CU can be used by a secretary for taking the minutes of the meeting, the headphone output also has a volume control knob to adjust the volume of the headphone. To support external participants (during town-council meetings, for example), extra microphones in any style (wired, wireless, handheld or podium) can be connected to the system through mic inputs

  Controls and Indicators
  • Equalizer comprising of knobs at 250Hz, 2kHz and 8kHz
  • Volume control for Mic 1 input
  • Volume control for Mic 2 / Aux input
  • Headphone input and volume control
  • Master volume control
  • Sliding switch for Equalizer On/Off
  • Sliding switch to enable or disable the priority tone for chairman units
  • Number of Active microphone control knob

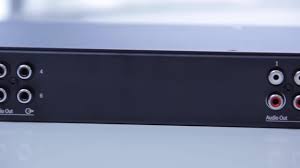

  Interconnections
  • Trunk input and output 8-pin DIN connectors for loop through connection
  • Microphone input with XLR connector
  • Configurable Mic or Aux input with 6.5mm phono jack
  • Cinch connectors for connecting to external PA system and recorder
  • Earth connection screw
  • Mains socket

• Technical specifications

  Electrical

  Mains voltage	230VAC,50 Hz (±10%)
  DC voltage supply to contribution units	24V ± 1V DC
  THD at rated output	<1%
  SNR	>-50dB at rated output (unweighted filter)
  Inputs
  Mic input sensitivity	1 mV (+1/-3dB)
  Aux input sensitivity	100mV (+1/-3dB)
  Frequency response	200 Hz to 12 kHz
  Input Impedance	4.7 kohm
  Equaliser
  Center frequencies of filters	250Hz,2kHz and 8kHz
  Filter bandwidth	1 octave
  Boost/Cut at center frequencies    Equaliser transfer gain	+6dB to -6dB  ±1dB
  PA Output
  Rated output Impedance	100 ohm
  SNR	>-50dB at rated output (unweighted filter)
  REC out
  Rated output Impedance	1 kohm
  SNR	>-50dB at rated output (unweighted filter)
  Dimensions (H x W x D)	88mm x 361mm x 252mm
  Weight    Color	5.5 kg  Charcoal(RAL 10736) and Grey (for rear cover)
  Operating temperature	-5ºC to 45ºC
  Storage temperature	-40ºC to +70ºC
