Description

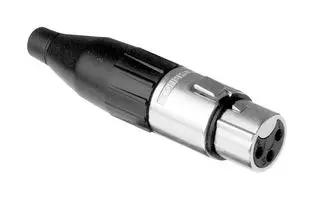

The AC3F is a 3-pole female XLR Cable Connector with tin-plated stamped contacts and a nickel-plated zinc die-cast shell. The AC series XLR connector feature the unique Australian design and patented jaws cable retention system for both standard solder connectors and the insulation displacement contact (IDC) connectors. A leading first mate last break socket contact is standard on all female connectors. The connector can be quickly and easily assembled without screws-by hand or portable termination tool.
Solder bucket connections
Leading first mate last break socket contact
≤3mΩ Typical contact resistance
≥1GΩ Insulation resistance
IP40 Protection rating
UL94V-0 Flammability rating
